R Series Reducer
Keywords:
R Series Reducer
Subcategory:
BLG Gear Units

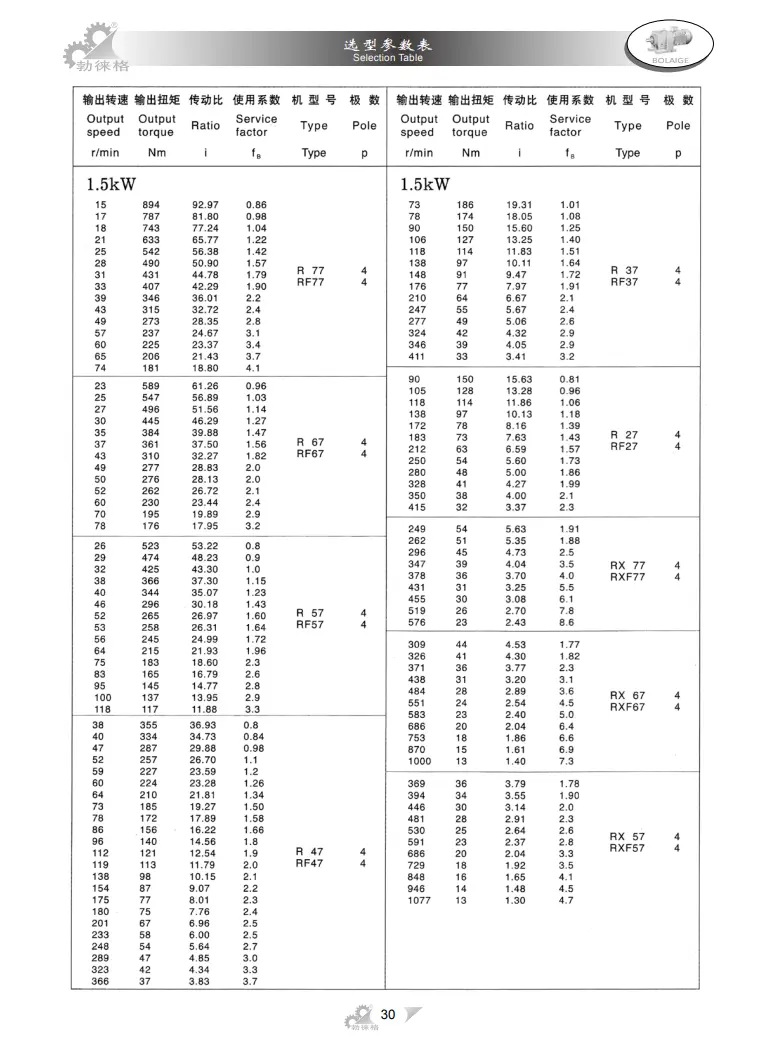

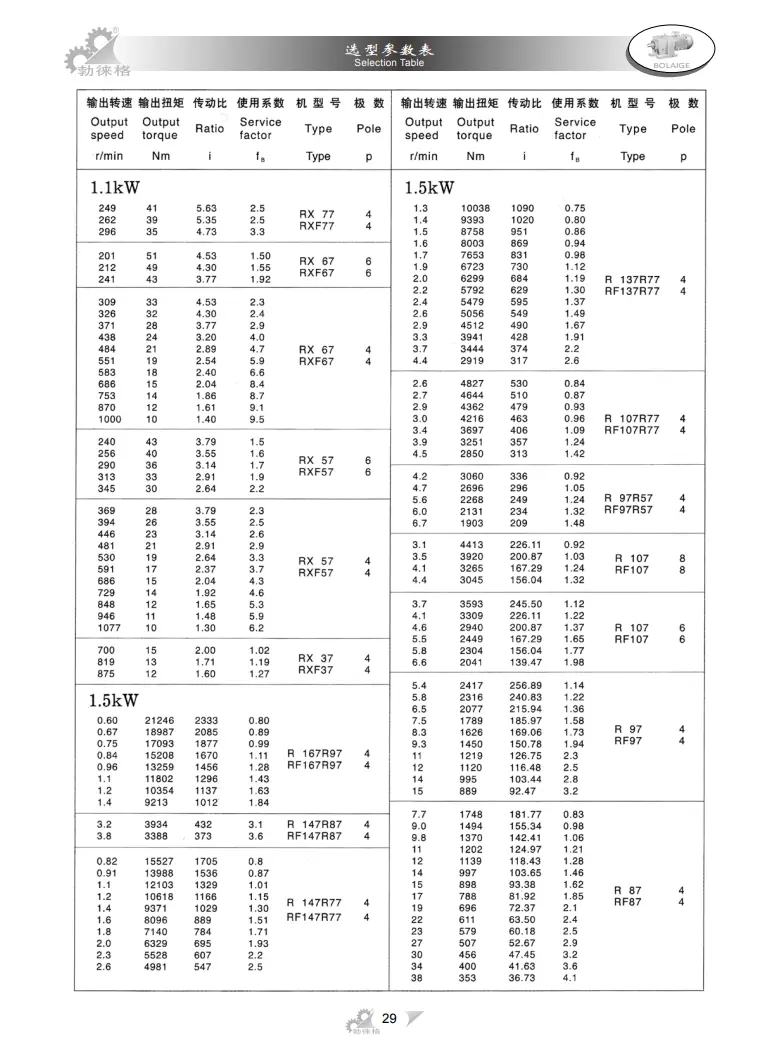

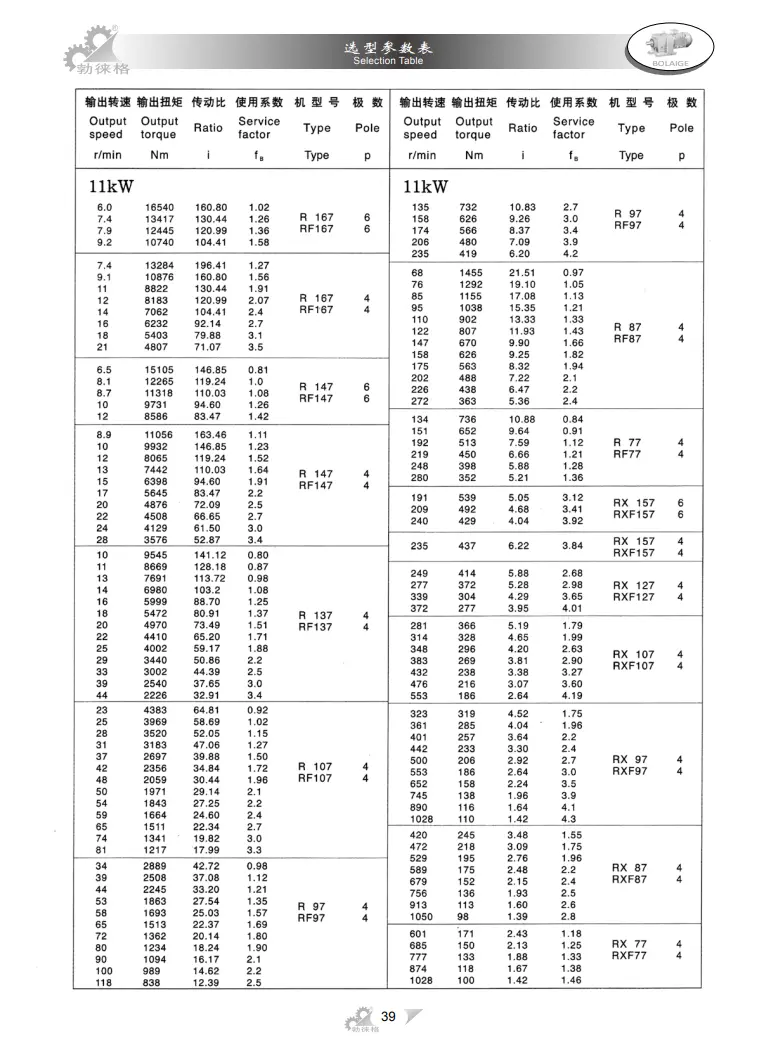

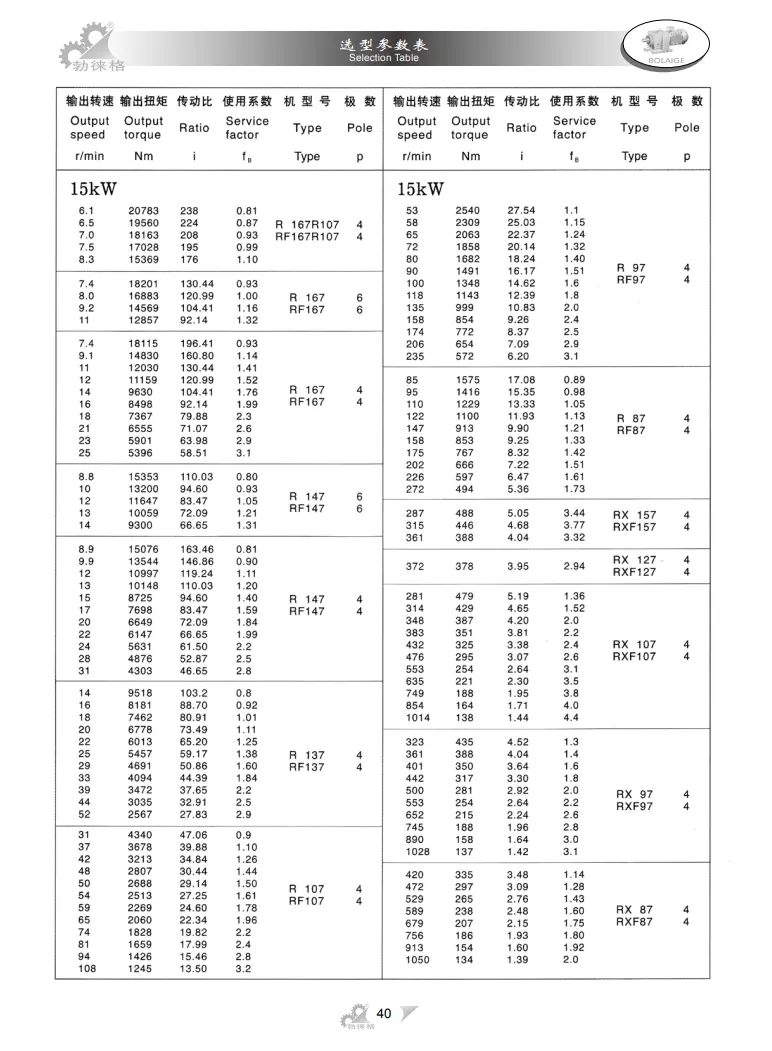

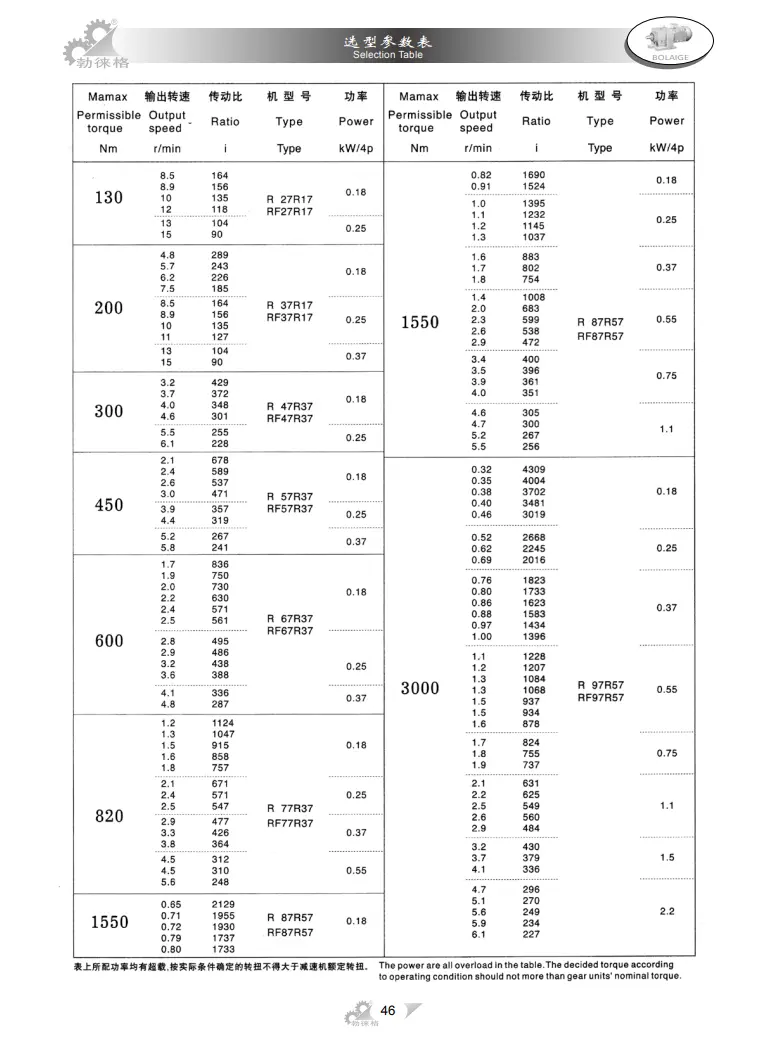

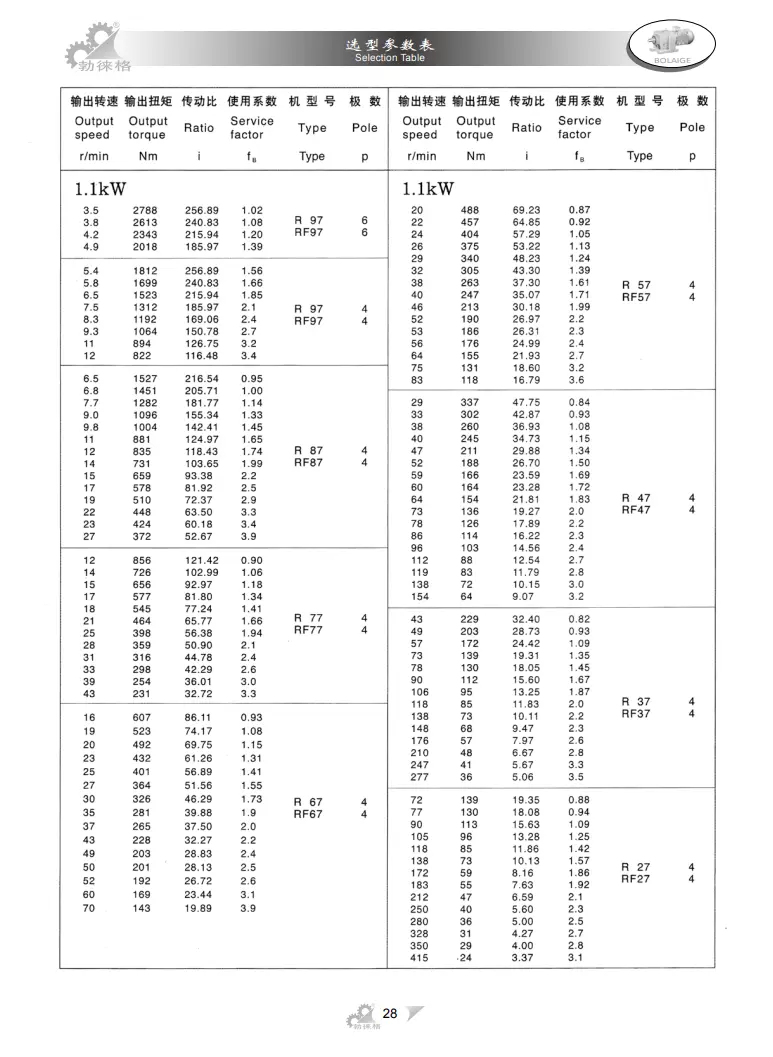

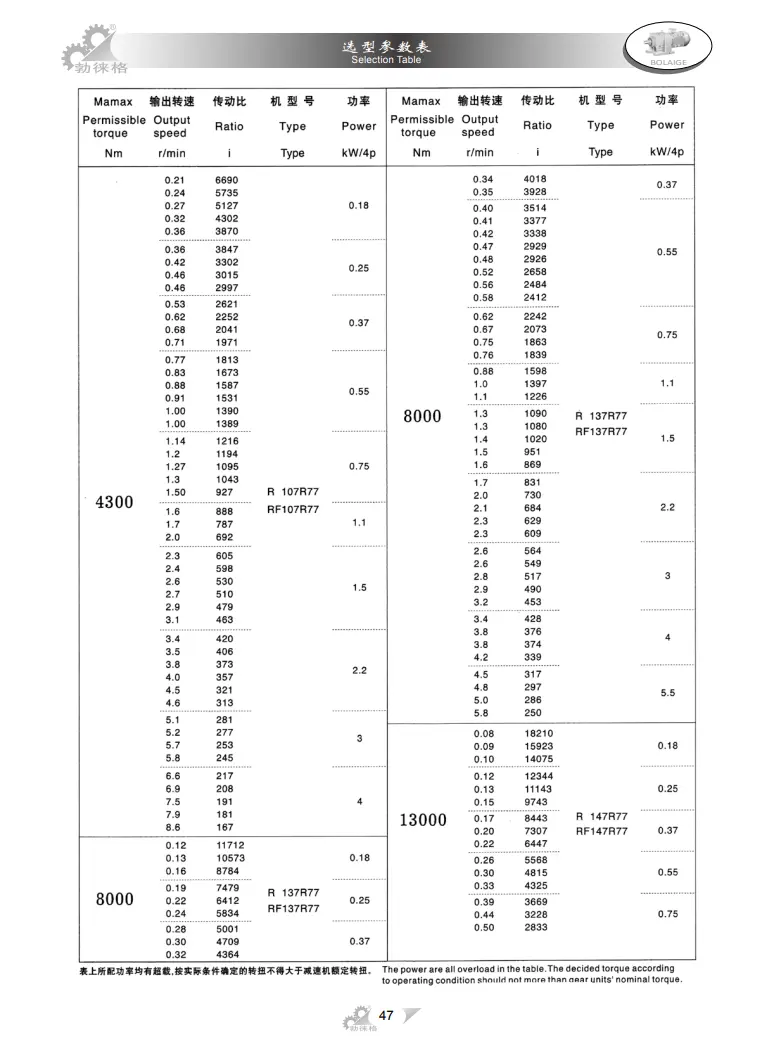

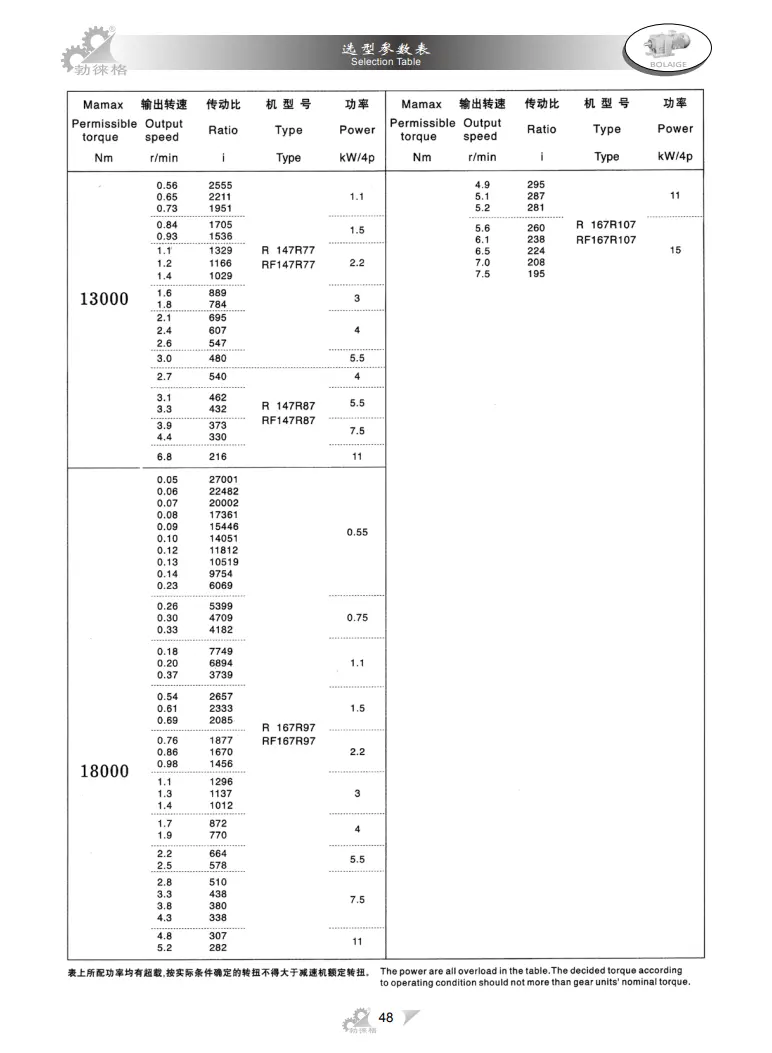

Technical parameters
Speed ratio range: R basic type 3.33～289.74, RX type 1.3～8.65, R/R combination type can reach 27001
Torque range: R basic type 85～18000 Nm, RX type 20～1680 Nm
Power range: R basic type 0.18～160 kW, RX type 0.18～132 kW
Product features：
1. The hard tooth surface reducer has high space utilization rate, reliable operation, strong overload resistance, and high power up to 132KW.；
2. Low energy consumption and superior performance, the power of the reducer is as high as 95% or more.；
3. Less vibration, lower noise, and more energy-saving；
4. The R series helical gear hard tooth surface reducer is made of high-quality forged steel material, a steel cast iron box, and the gear surface is subjected to high-frequency heat treatment.；
5. After precision machining to ensure shaft parallelism and positioning bearing requirements, the reducer that constitutes the helical gear transmission assembly is equipped with various types of motors, which are combined into mechatronics to completely ensure the quality characteristics of the gear motor products.
Performance characteristics：
1. Small bias output, compact structure, maximum limit use of box space, two-stage and three-stage in the same box.
2. The integral casting box body is adopted. The structural stiffness of the box body is good, and it is easy to improve the strength of the shaft and the bearing life.

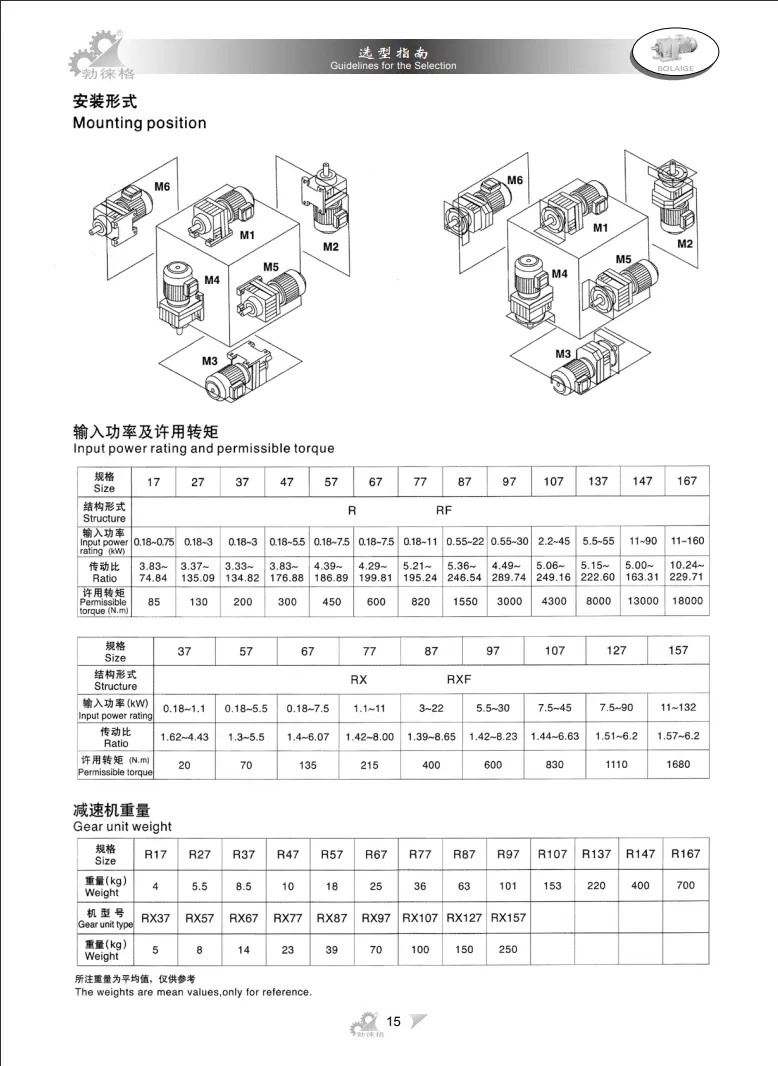

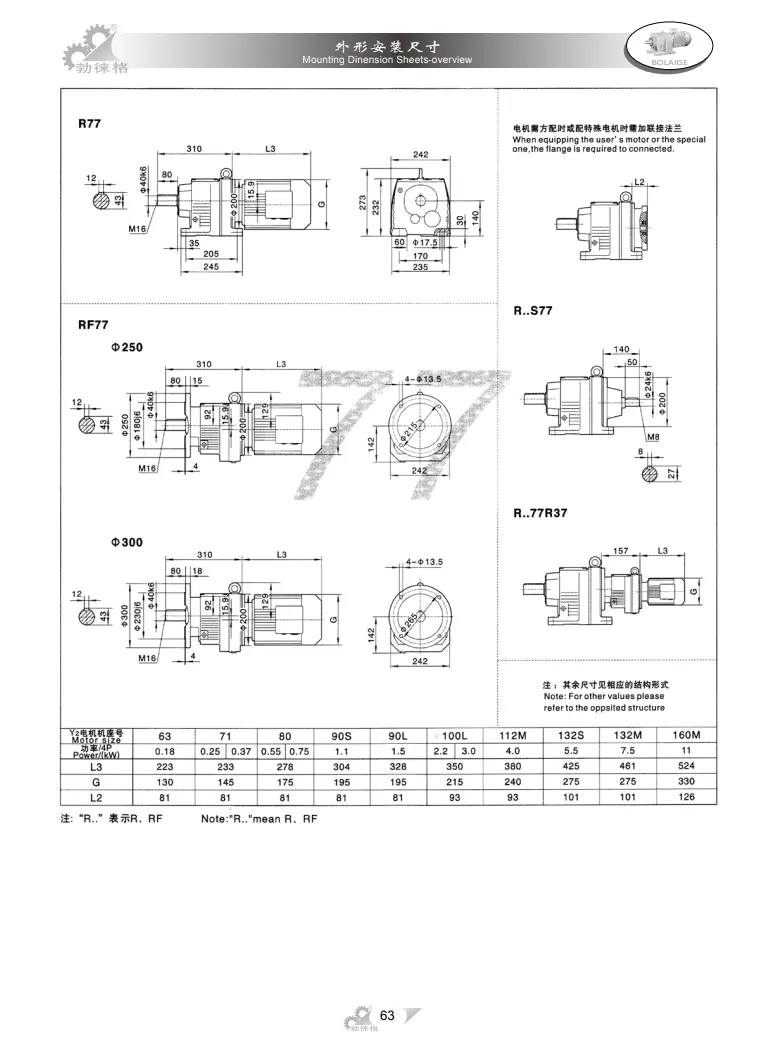

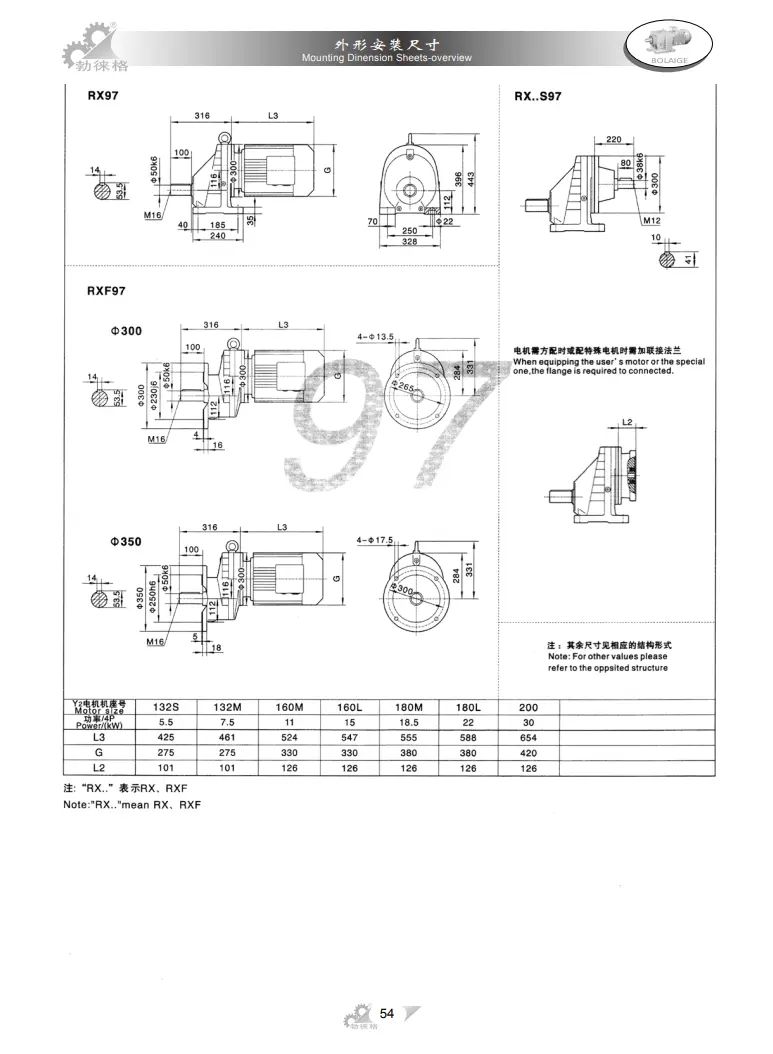

3. Installation method: the foot device and flange device have large and small flanges, which are easy to choose.
4. The output of the solid shaft, the uniform power is 96% of the second stage, 94% of the third stage, and 85% of the uniform power of the R/R combination.
5. The RM series specially planned for mixing can carry large axial and radial forces.
What should I provide when I choose gearbox/speed reducer?
The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Are you a motor manufacturer?
Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
How long does it take to finish my order?
Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. The specific delivery time depends on the items and the quantity of your order.
Can I get a sample first?
Sure, we are honored to offer you sample for test before placing a formal order.
How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Any Other Question, Please Feel free to contact us!
