K Series Reducer
Keywords:
K Series Reducer
Subcategory:
BLG Gear Units
The vertical output of the four series of reducers, compact structure, high torque transmission on the hard tooth surface, and high-precision gears ensure stable work, low noise, and long life.

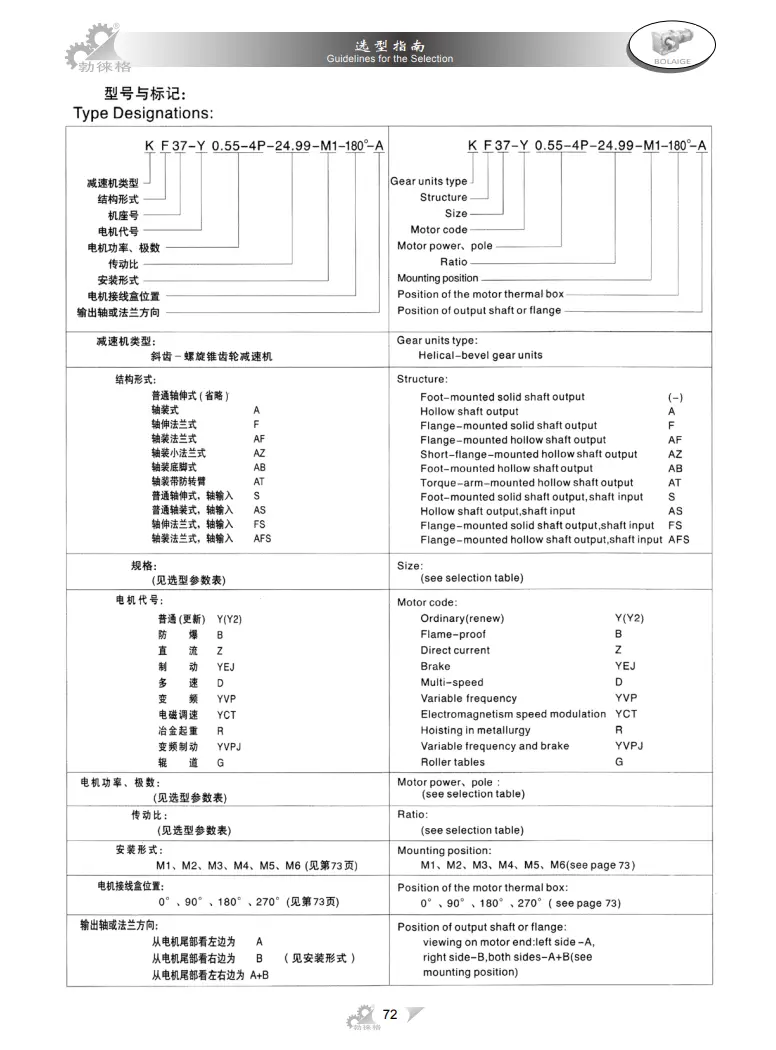

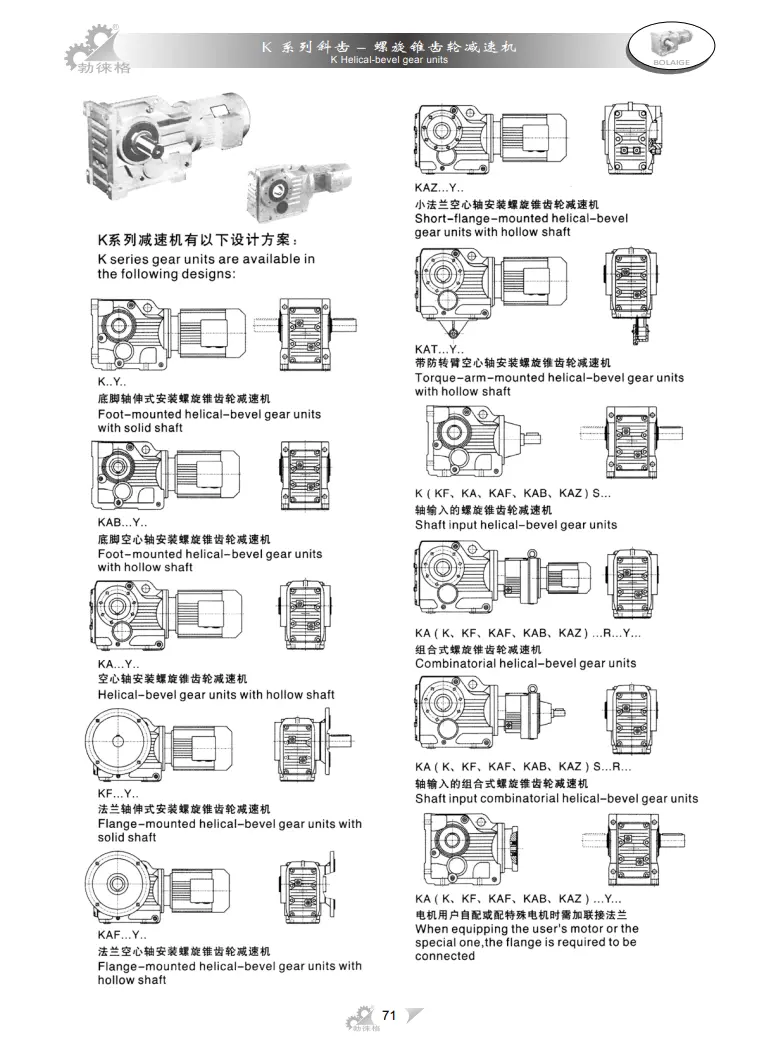

2. Installation method: foot installation, hollow shaft installation, flange installation, torsion arm installation, small flange installation.
3. Input method: motor direct connection, motor belt connection or input shaft, connection flange input.
4. Output method: hollow shaft output or solid shaft output, with an average efficiency of 94%.
5. The combination with the R series can get a greater speed ratio.
K series product features of the four series of reducers：
1. It is reliable and durable, with high overload resistance, and power can reach more than 200KW.
2. Low energy consumption, superior performance, and the efficiency of the reducer is as high as 95% or more.
3. Low vibration, low noise and high energy saving.
4. Choose high-quality section steel materials to cast the box.
5. The reducer of helical gear, bevel gear, and bevel gear transmission assembly is equipped with various types of motors.
Advantages of K series reducer
K series spiral bevel gear reducer has low vibration, low noise and high energy saving.
The K series reducer is manufactured in accordance with international technical requirements and has a high scientific and technological content.
It is space-saving, reliable and durable, and can only accept high overload, with a power of more than 200KW.
The high-quality section steel frame, the steel cast iron box, and the outer surface of the gear are treated with high-frequency heat.
This series of gear reducer has low energy consumption and superior performance, and the efficiency of the reducer is as high as 95% or more.
After fine processing, the reducer that constitutes the helical gear, bevel gear, and bevel gear transmission assembly is equipped with various types of motors to form mechatronics, which completely guarantees the quality characteristics of the product.
What should I provide when I choose gearbox/speed reducer?
The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Are you a motor manufacturer?
Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
How long does it take to finish my order?
Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. The specific delivery time depends on the items and the quantity of your order.
Can I get a sample first?
Sure, we are honored to offer you sample for test before placing a formal order.
How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Any Other Question, Please Feel free to contact us!
