S Series Reducer
Keywords:
S Series Reducer
Subcategory:
BLG Gear Units
Technical parameters：

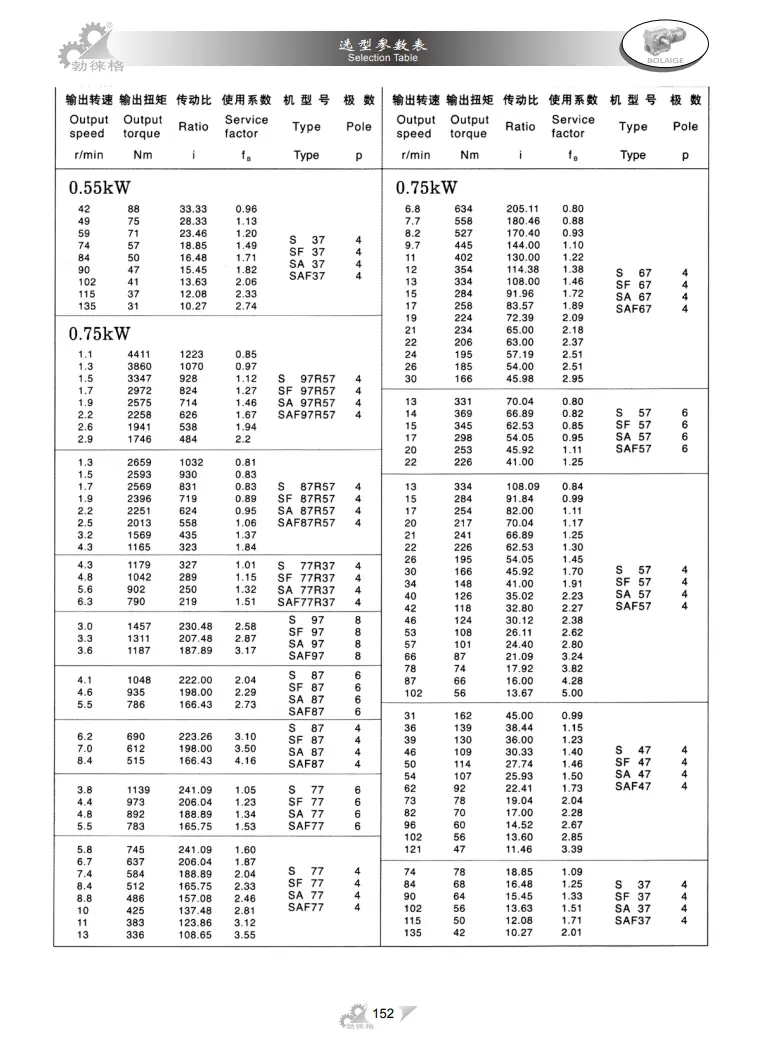

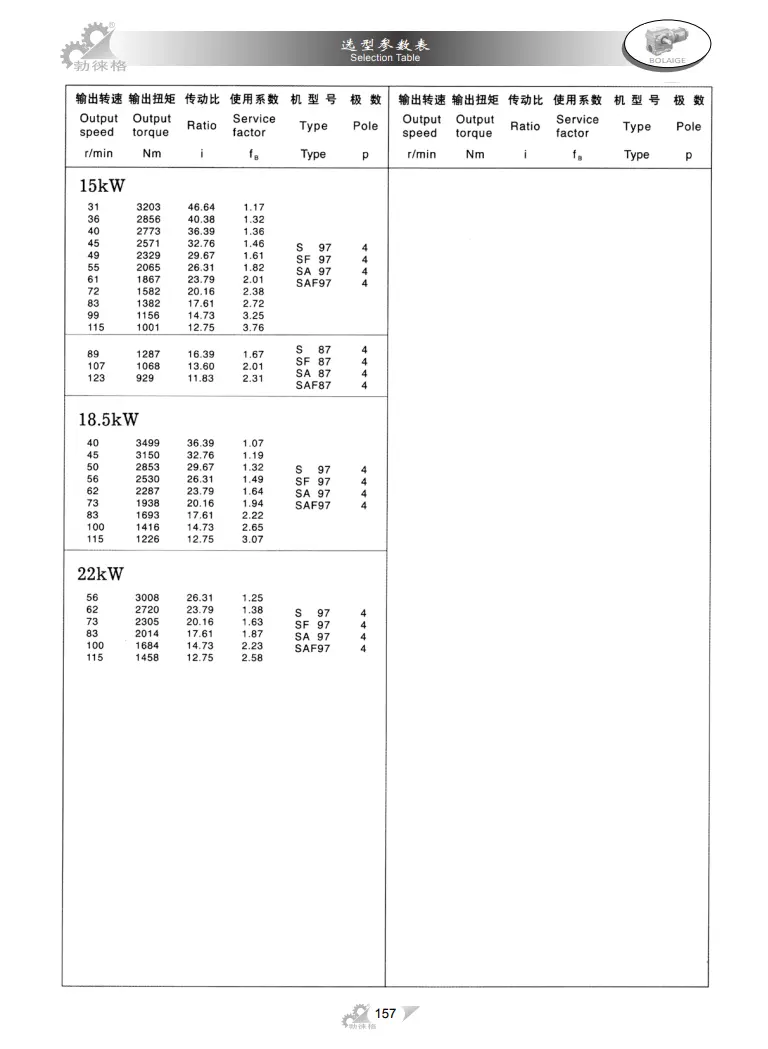

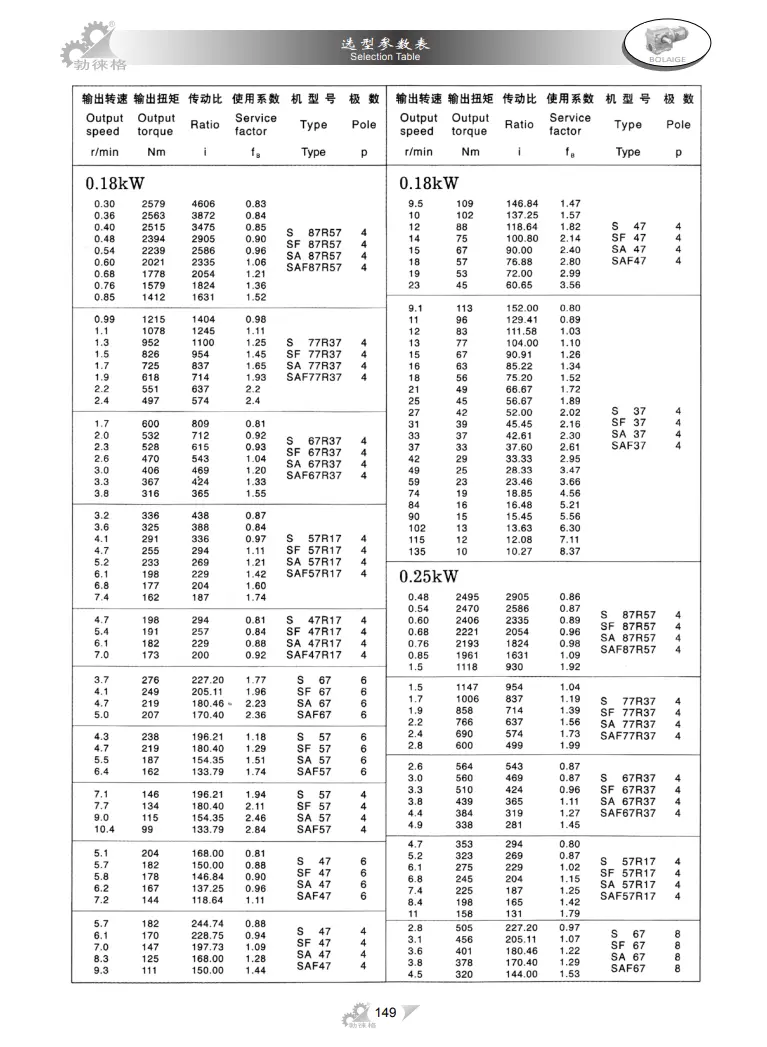

The basic speed ratio range is 9.96～244.74, and the combined S series/R series can reach 8608.
Torque range: 43～4200 Nm
Power range: 0.18～22kW

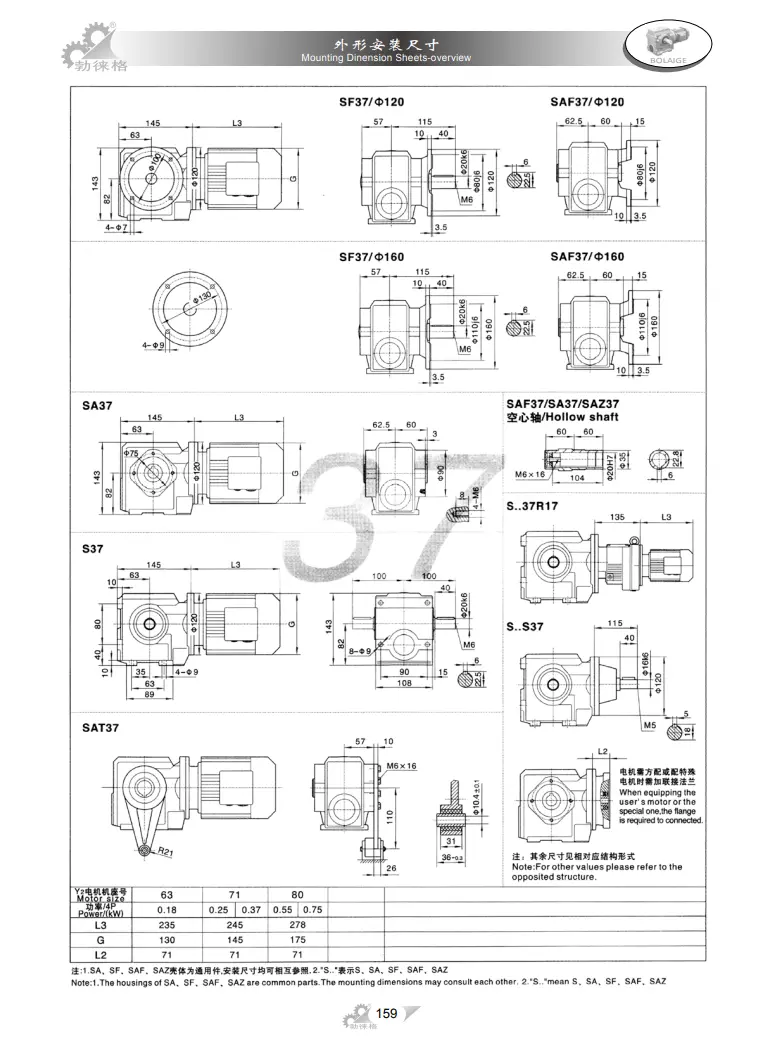

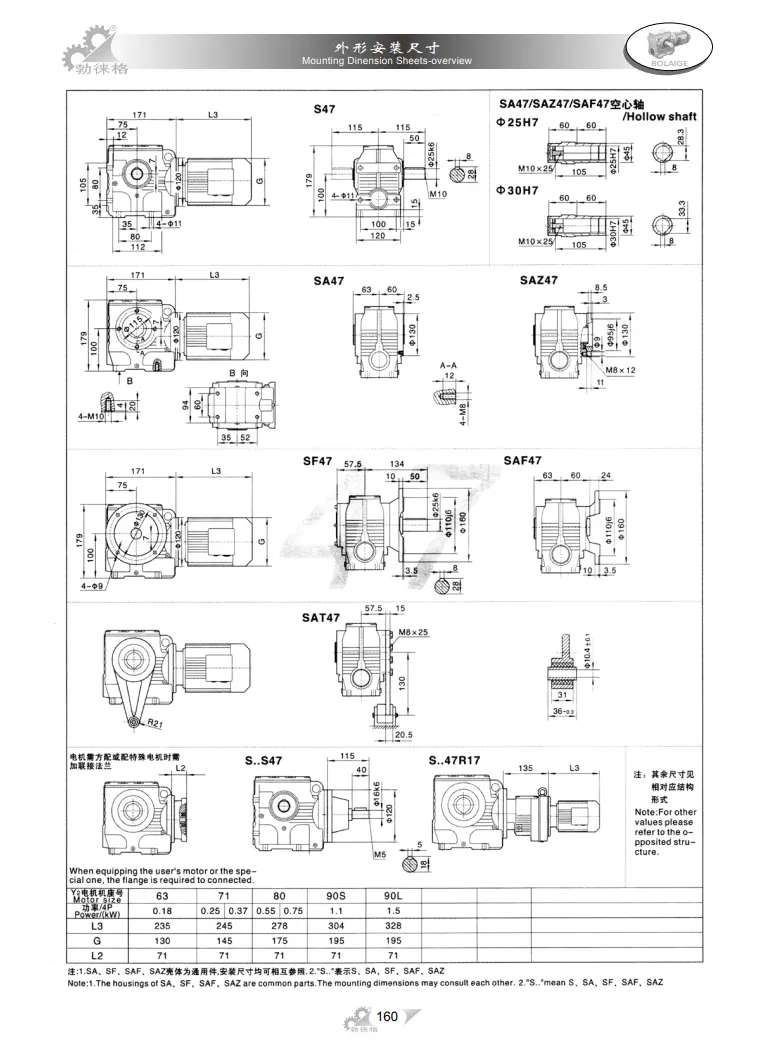

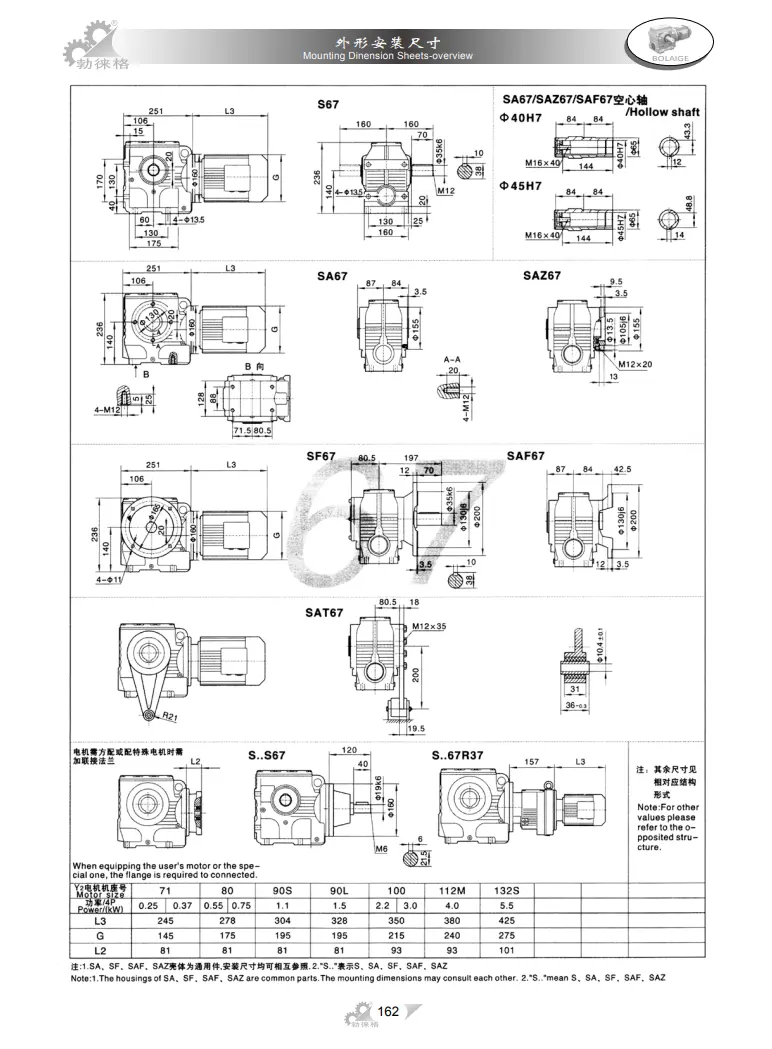

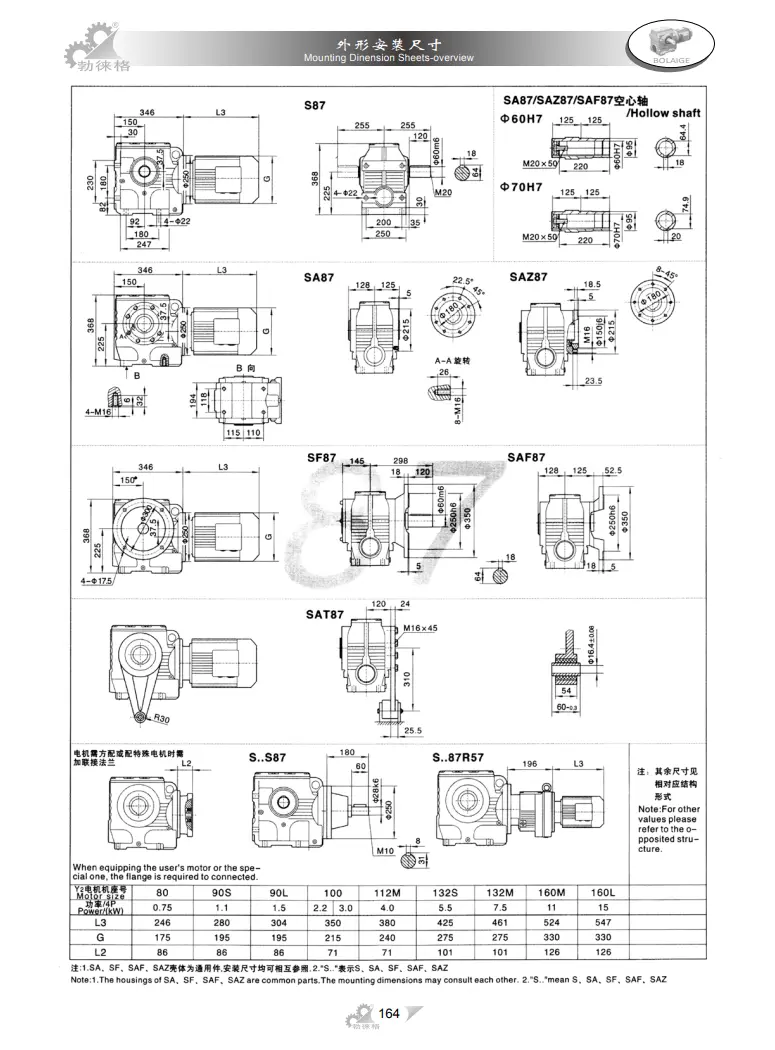

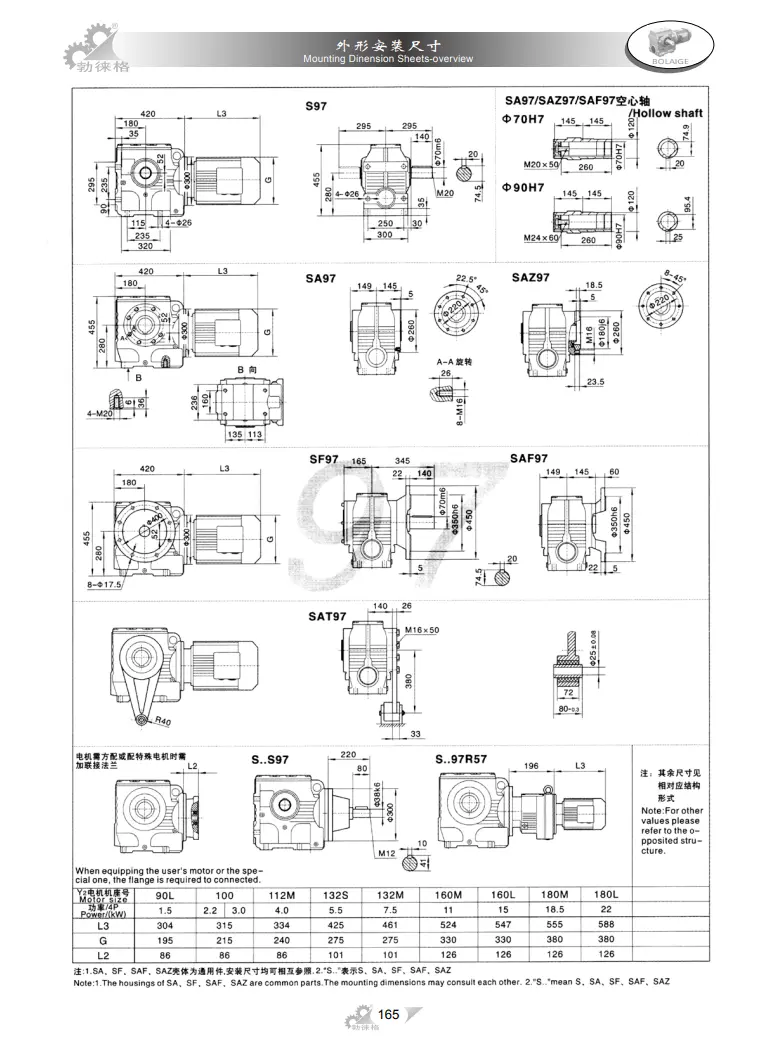

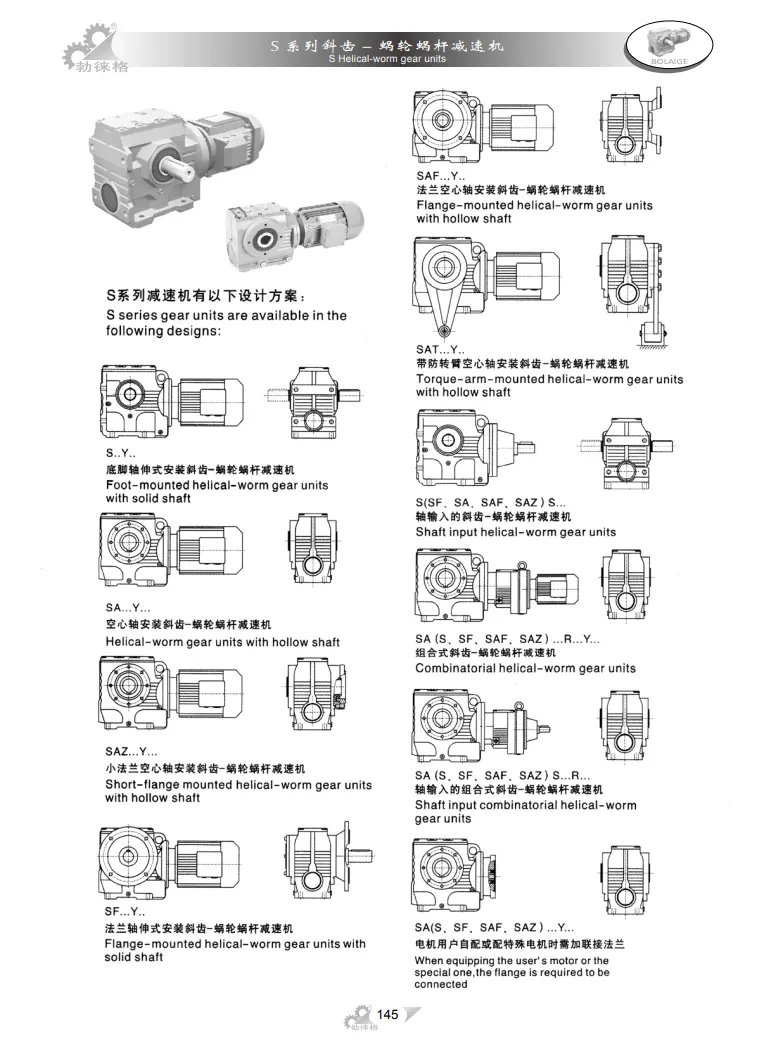

Structure: S-shaft extension connection SF-shaft extension, flange installation S...S-means shaft input, SA-shaft-mounted connection, SAF-shaft-mounted, flange-mounted
Technical characteristics of the S series reducer of the four series of reducers：
1. The combination of helical gear and worm gear has a compact structure and a large reduction ratio.

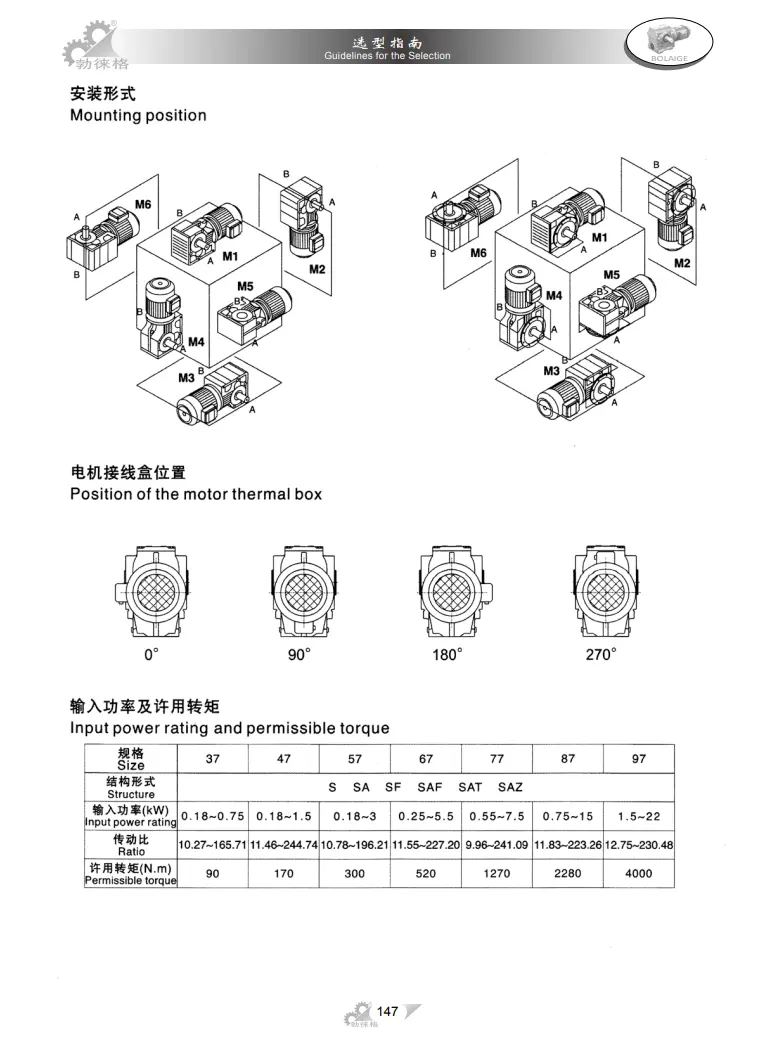

2. Installation method: foot installation, hollow shaft installation, flange installation, torsion arm installation, small flange installation.
3. Input method: motor direct connection, motor belt connection or input shaft, connection flange input.
4. Average efficiency: the reduction ratio of 7.5-69.39 is 77%; 70.43-288 is 62%; the S/R combination is 57%.

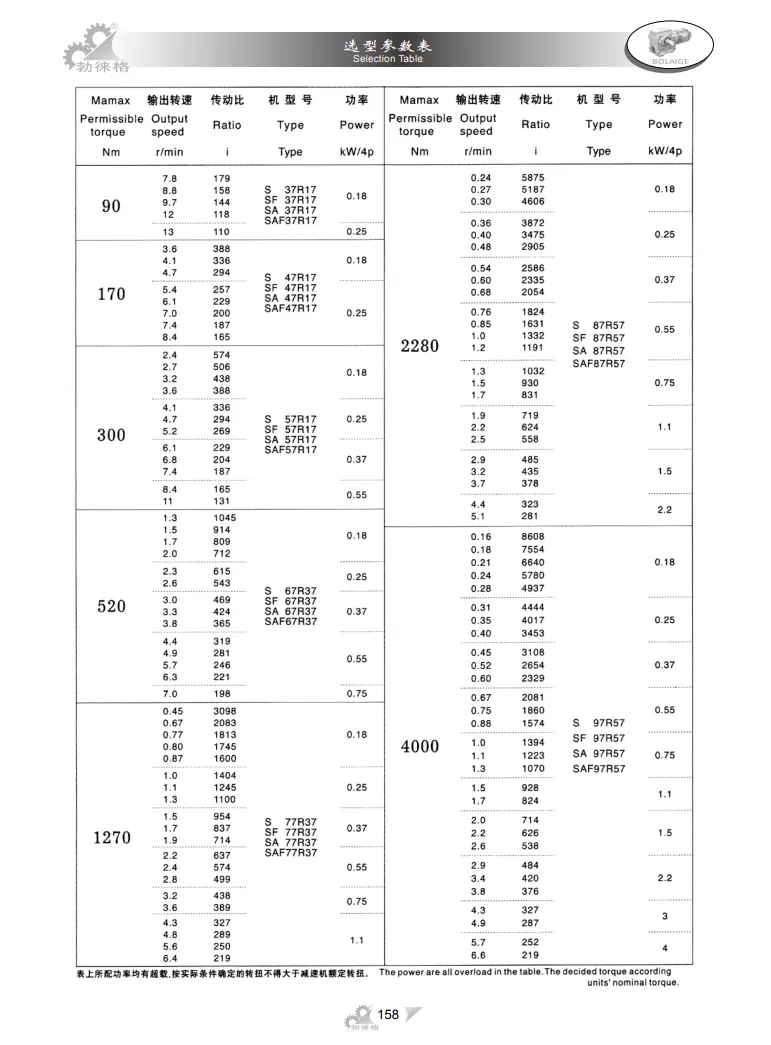

5. The combination with the R series can get a greater speed ratio.
Product features of four series of reducers：
1. The concave and convex surface of the body has a heat dissipation effect, strong vibration absorption, low temperature rise, and low noise.
2. The confidential seal has good performance and strong adaptability to the working environment.
3. The S series helical gear and worm gear reducer has high transmission accuracy, which is especially suitable for working in situations where there are frequent starts.
4. The key parts of the S helical gear reducer are made of high wear-resistant materials and have undergone special heat treatment. They have the characteristics of high machining accuracy, stable transmission, small size, large carrying capacity, and long life.
5. Helical gear reducer can be configured with various types of motors, forming mechatronics, which fully guarantees the quality characteristics of the product.
What should I provide when I choose gearbox/speed reducer?
The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Are you a motor manufacturer?
Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
How long does it take to finish my order?
Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. The specific delivery time depends on the items and the quantity of your order.
Can I get a sample first?
Sure, we are honored to offer you sample for test before placing a formal order.
How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Any Other Question, Please Feel free to contact us!
