Reduction Gear Manufacturers
YWJ Series Turbo Screw Lift
Keywords:
YWJ Series Turbo Screw Lift
Subcategory:
Worm Gear Reducer Series

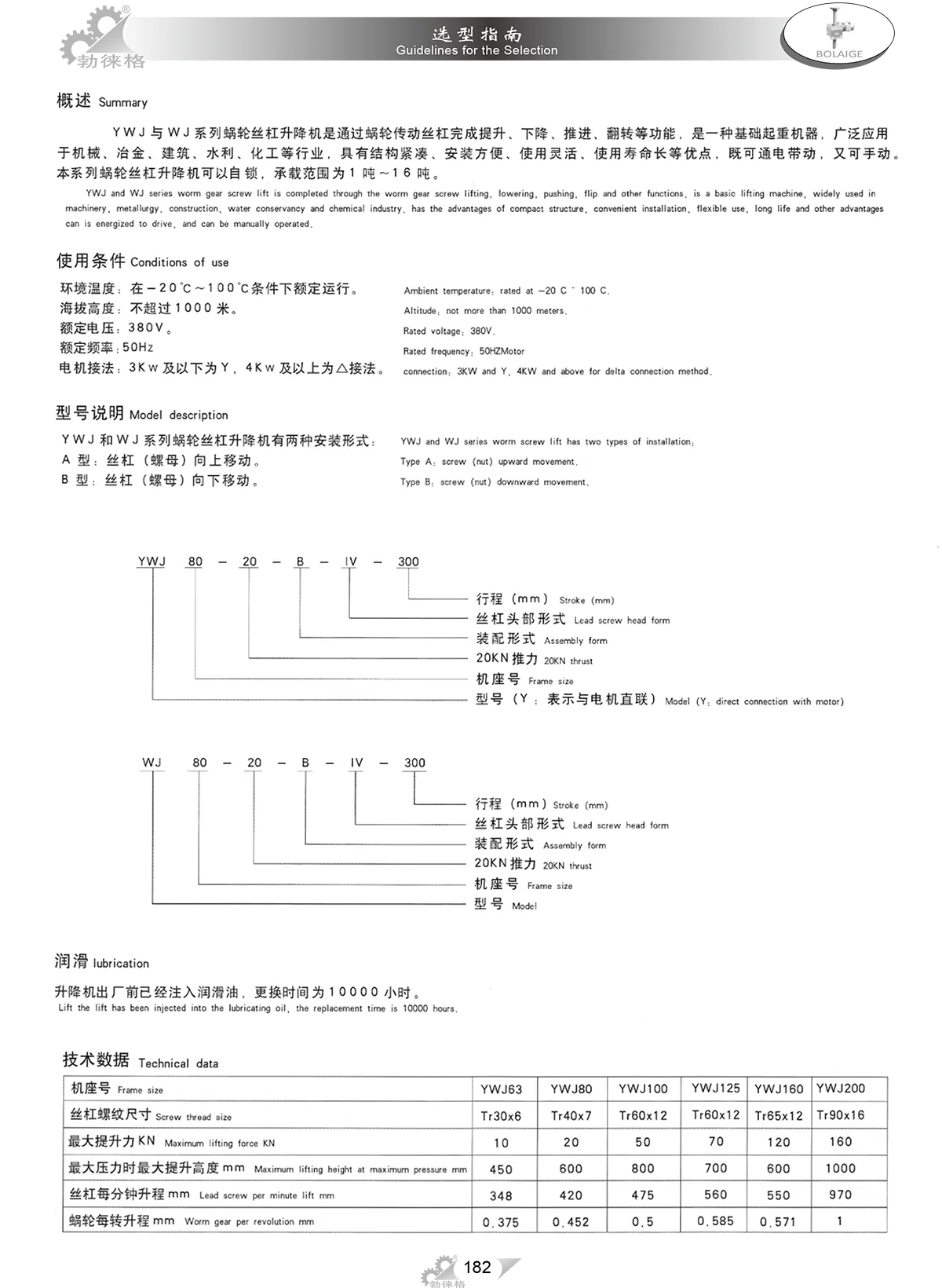

YWJ and WJ series worm gear screw lifts complete the functions of lifting, descending, propulsion, and flipping through worm gear transmission screws. They are a kind of basic lifting equipment, which is widely used in machinery, metallurgy, construction, water conservancy, chemical industry and other industries. They have the advantages of compact structure, easy installation, flexible use, and long service life. They can be driven by electricity or manually. This series of worm gear screw lifts can be self-locking and have a carrying range of 1 ton to 16 tons.
What should I provide when I choose gearbox/speed reducer?
The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Are you a motor manufacturer?
Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
How long does it take to finish my order?
Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. The specific delivery time depends on the items and the quantity of your order.
Can I get a sample first?
Sure, we are honored to offer you sample for test before placing a formal order.
How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Any Other Question, Please Feel free to contact us!
