PRODUCTS
Reduction Gear Manufacturers
F Series Reducer
Keywords:
F Series Reducer
Subcategory:
BLG Gear Units
Performance characteristics of four series reducer F series parallel shaft helical gear reducer：
◆ Parallel output, compact structure, high transmission torque, stable work, low noise and long life.

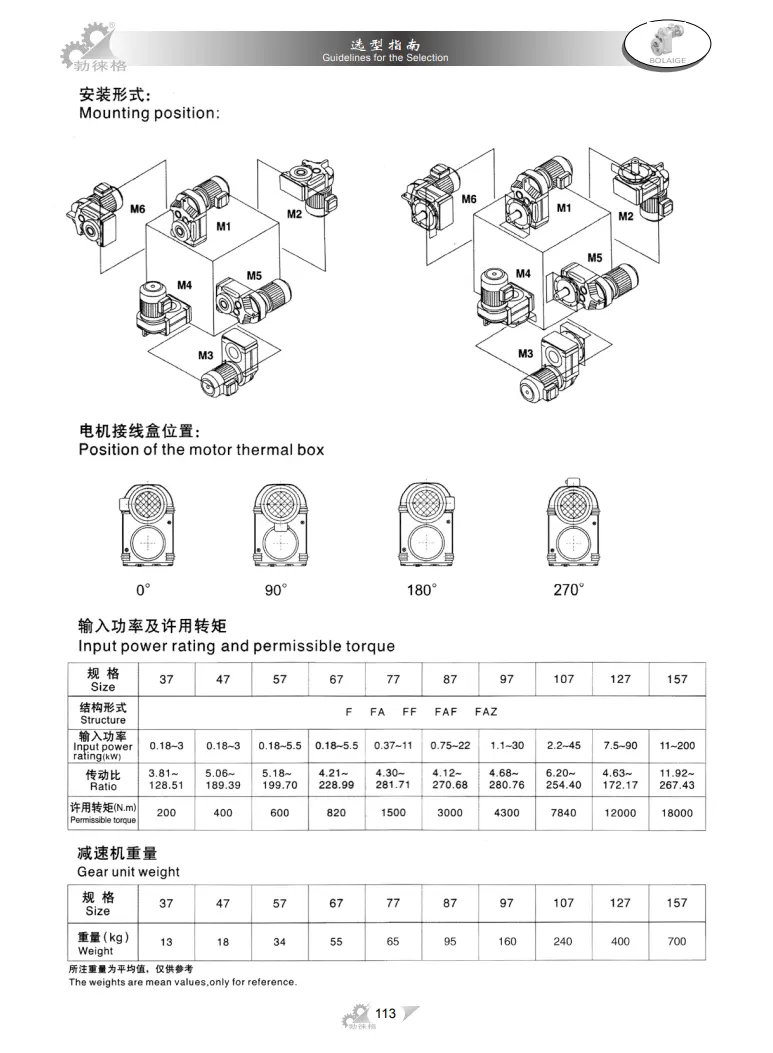

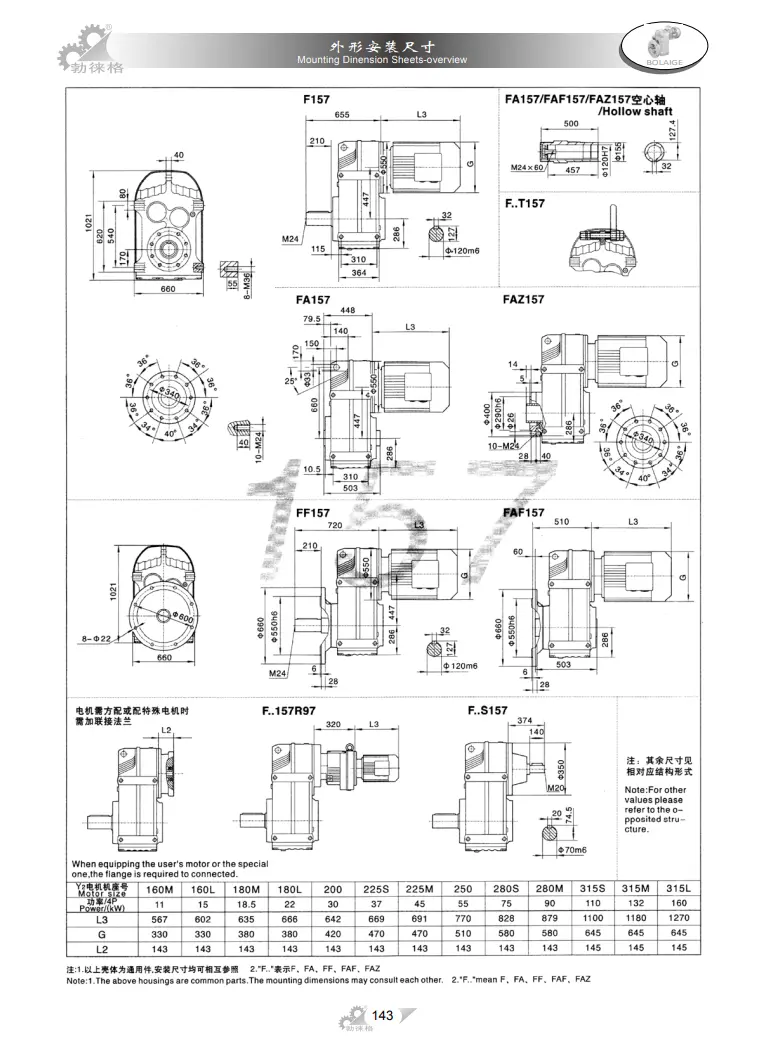

◆ Installation method: base installation, hollow shaft installation, flange installation, torsion arm installation, small flange installation.
◆ The basic type of two-stage input and output rotation direction is the same, and the three-stage is opposite; consult separately when F/R is combined.
◆ Output method: hollow shaft output or solid shaft output.
◆ Average efficiency: the second level is 96%, the third level is 94%, and the average efficiency of the F/R combination is 85%.

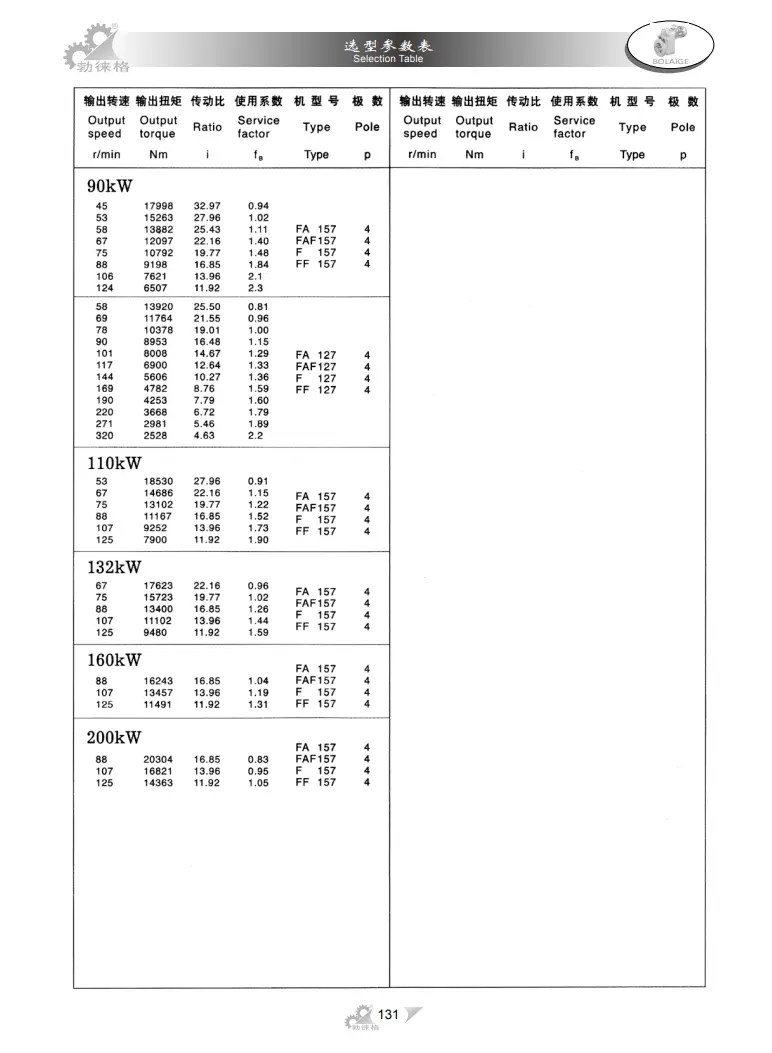

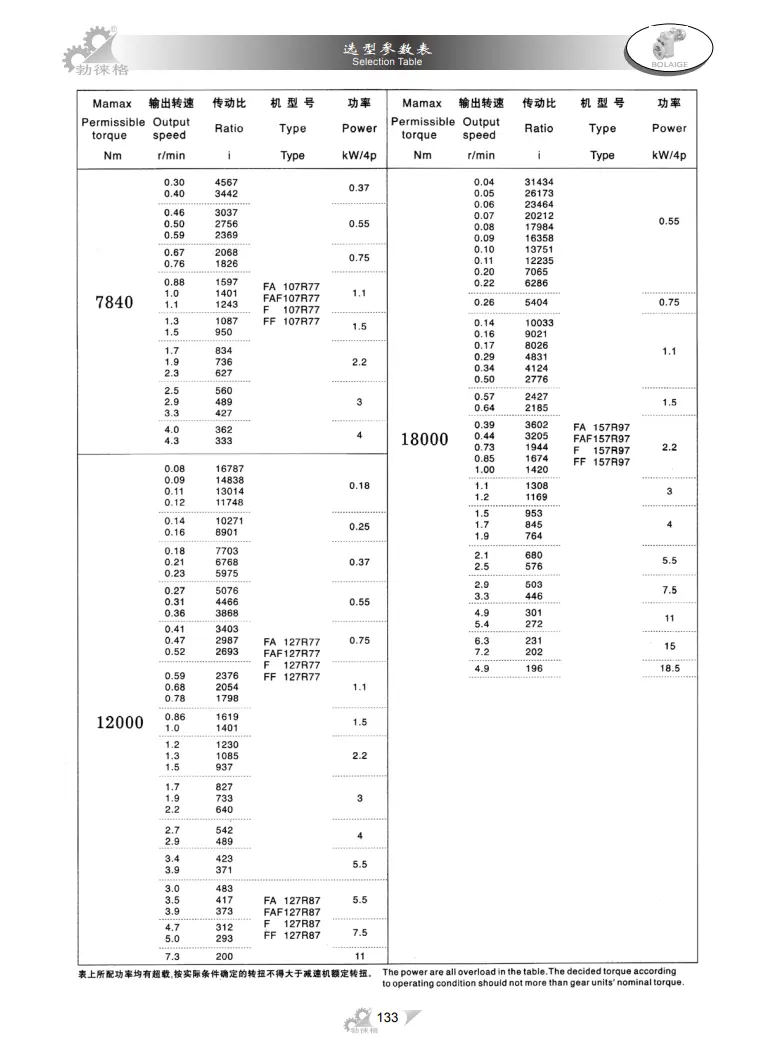

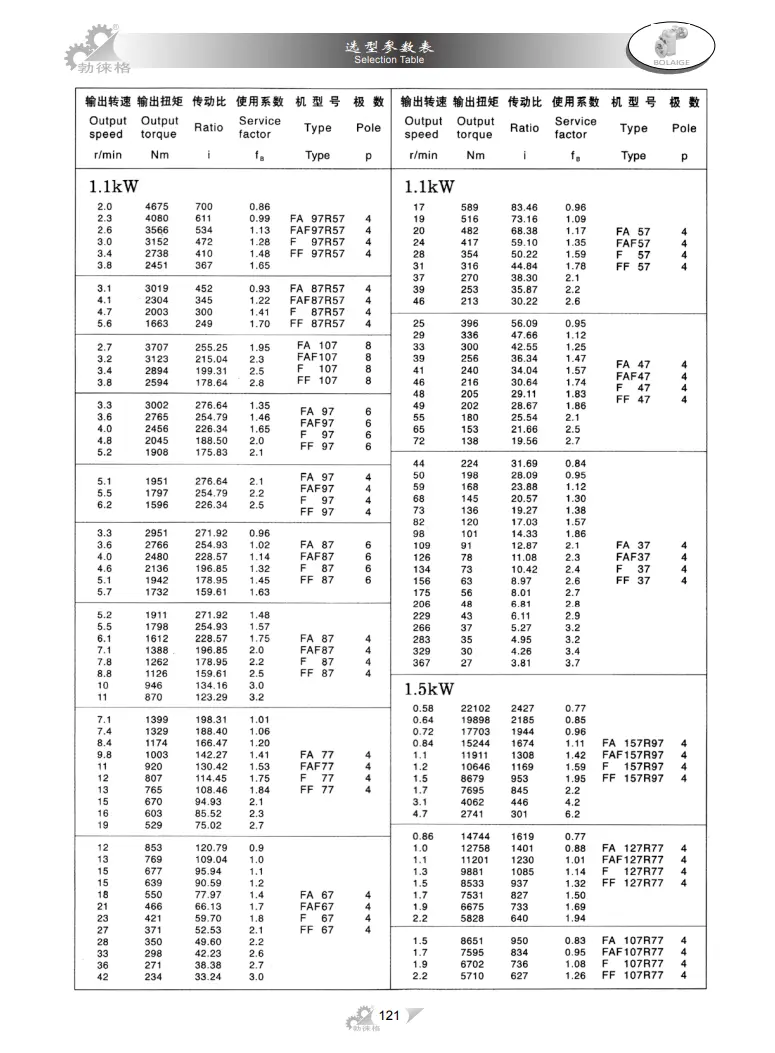

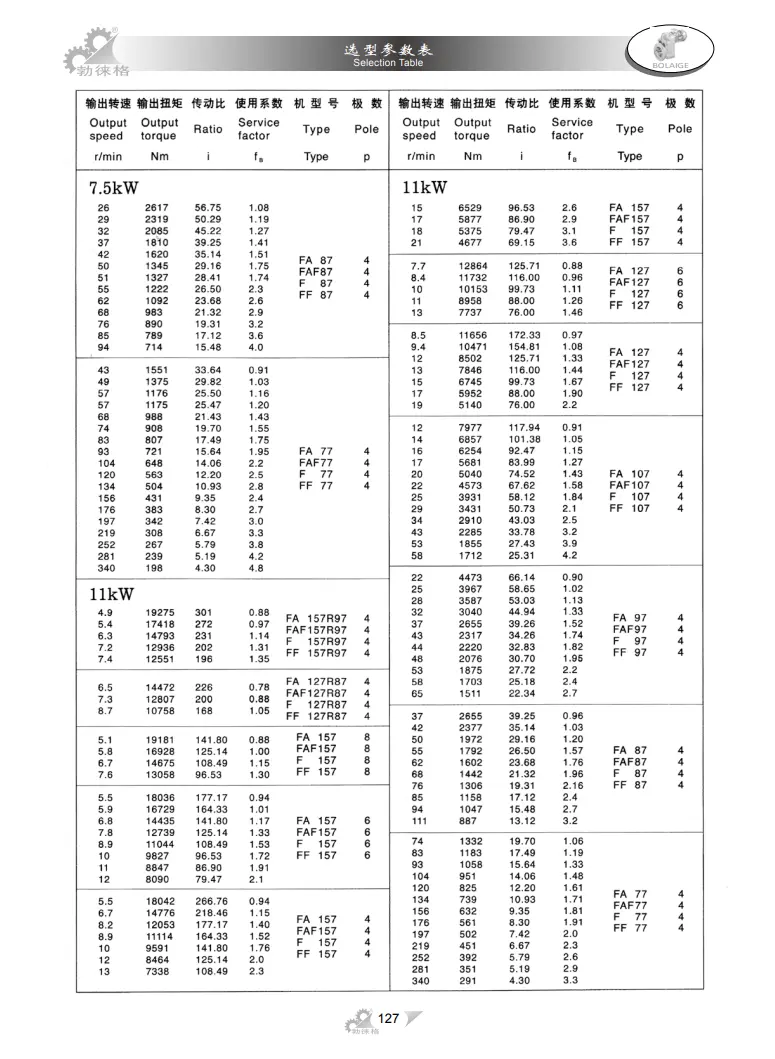

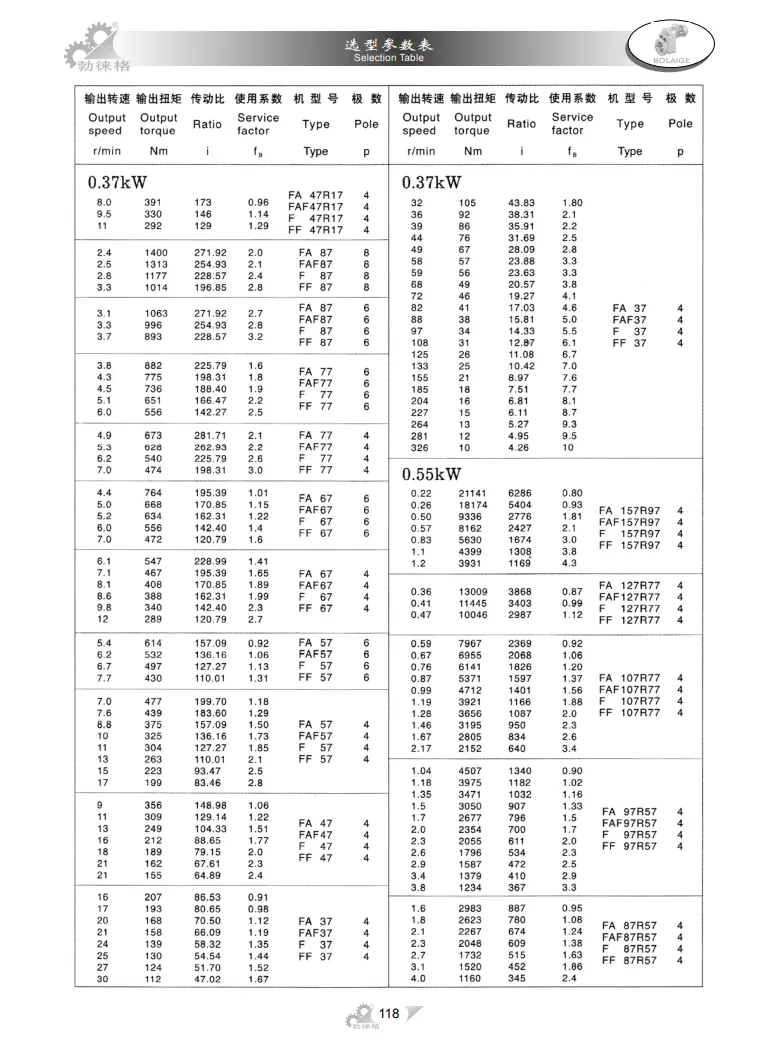

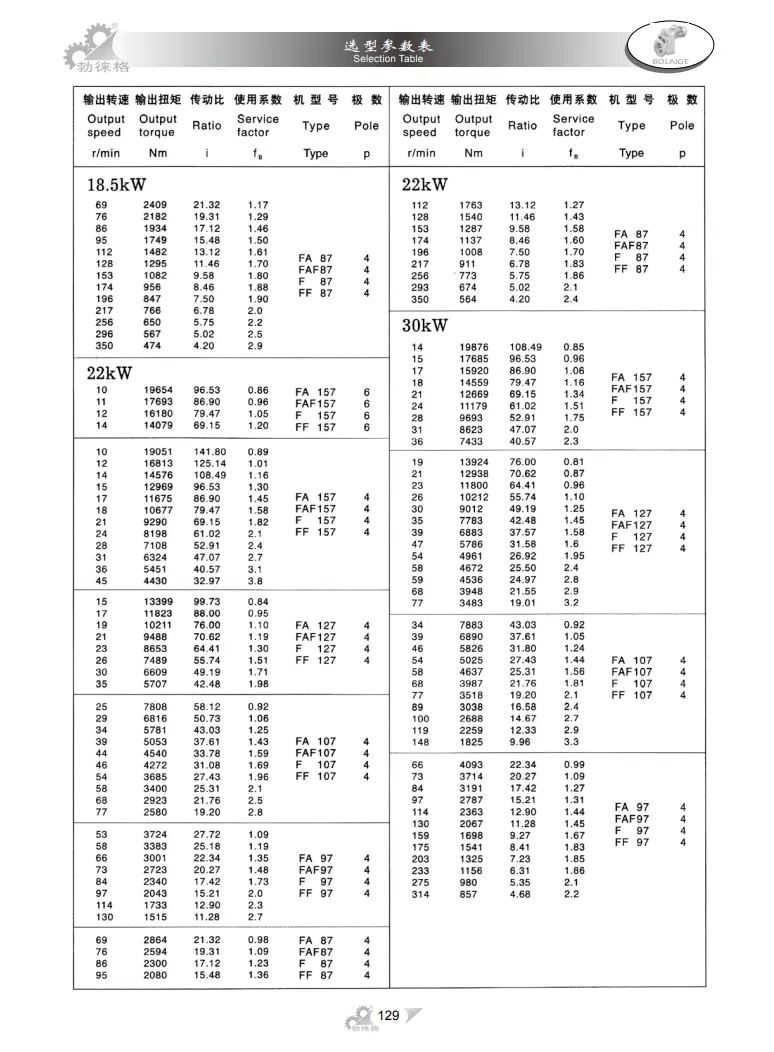

Technical parameters of F series parallel shaft helical gear reducer：
Speed ratio range: basic type 3.81～281.71, F/R combination type can reach 31434
Torque range: 200～18000 Nm
Power range: 0.18～200 Kw
F series parallel shaft helical gear reducer product overview：
1. The F series parallel shaft helical gear reducer is manufactured in combination with international technical requirements and has a high scientific and technological content.
2. It saves space, is reliable and durable, has high overload resistance, and has a power of more than 90KW.
3. Low energy consumption, superior performance, and the efficiency of the reducer is as high as 95% or more.
4. Low vibration, low noise, high energy saving, selection of high-quality section steel materials, steel cast iron box, and high-frequency heat treatment on the surface of the gear.
5. After precision machining, to ensure the parallelism of the shaft and the accuracy of positioning, the reducer that constitutes the gear transmission assembly is equipped with various types of motors, forming mechatronics, and ensuring the quality characteristics of the product.
What should I provide when I choose gearbox/speed reducer?
The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Are you a motor manufacturer?
Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
How long does it take to finish my order?
Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. The specific delivery time depends on the items and the quantity of your order.
Can I get a sample first?
Sure, we are honored to offer you sample for test before placing a formal order.
How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Any Other Question, Please Feel free to contact us!
